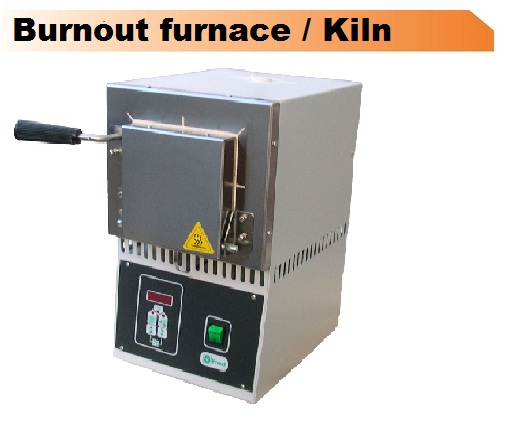

Simed AF170E burnout furnace / Kiln

The AF170 E comes complete with a

99 hour delay timer

Up to 1100 C,  the ability to store up to 10 programes  in 4 stages each, if required an override facility for an accelerated top temperature


External dimensions:30 x 38.5 x 44

Internal dimensions: 12 x 16 x 9

And is capable of taking 7 x 1X  6 x 3X or 3 x 6X  2 x 9X rings


DE1 Emmevi Burnout Furnace
Digital panel controlled by electronic microprocessor – Possibility of programming 1 two-phase cycle; each phase includes 3 programmable parameters: temperature (up to 1100 °C), temperature increase speed (from 1 to 30 °C per minute) and hold time (from 1 minute to 21 hours) – Start-up delay function programmable from 0 to 100 hours with 1 minute resolution – Thermocouple fault signal and automatic resistance inhibition – Data and timer setting saved also in event of power failure – Door safety micro switch; chamber power supply is cut off automatically when door is opened – Door with magnetic closure – Safety fuse – Heating system by means of single-block muffle – Stainless steel door and front panel.
Internal dimensions       120 x 160 x 95
